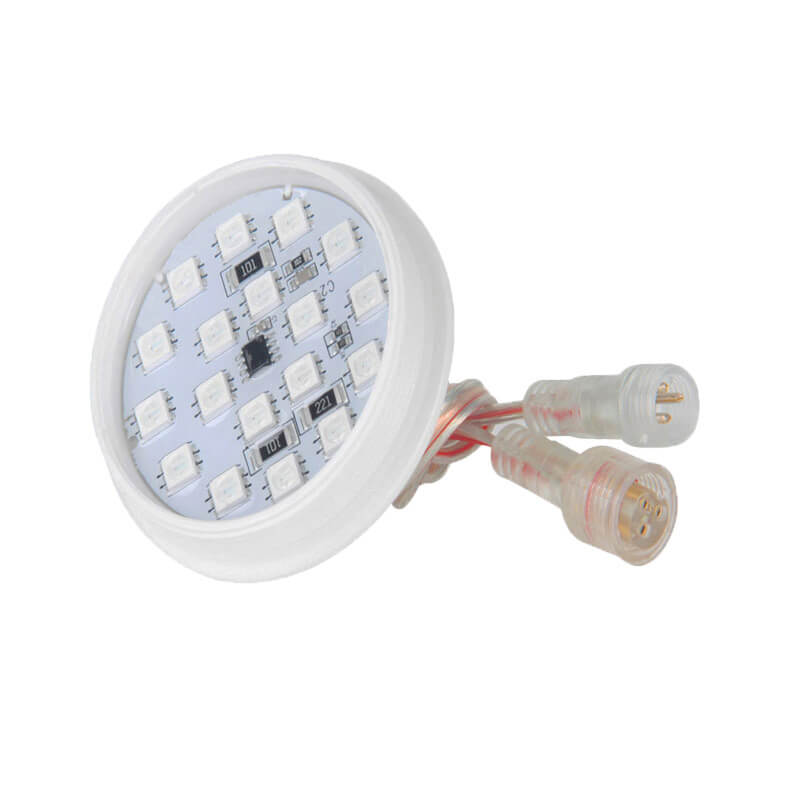

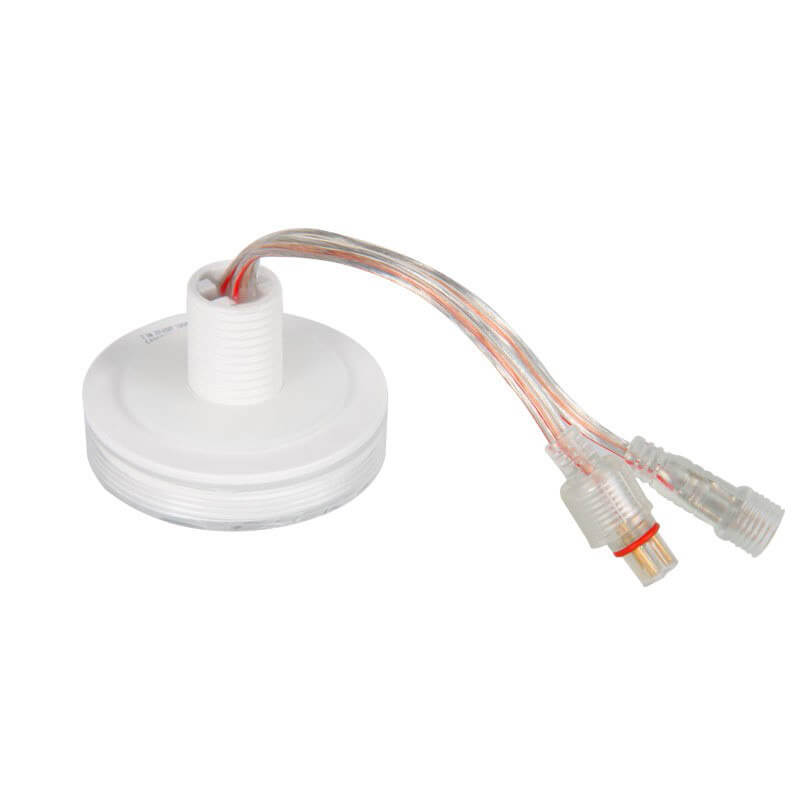

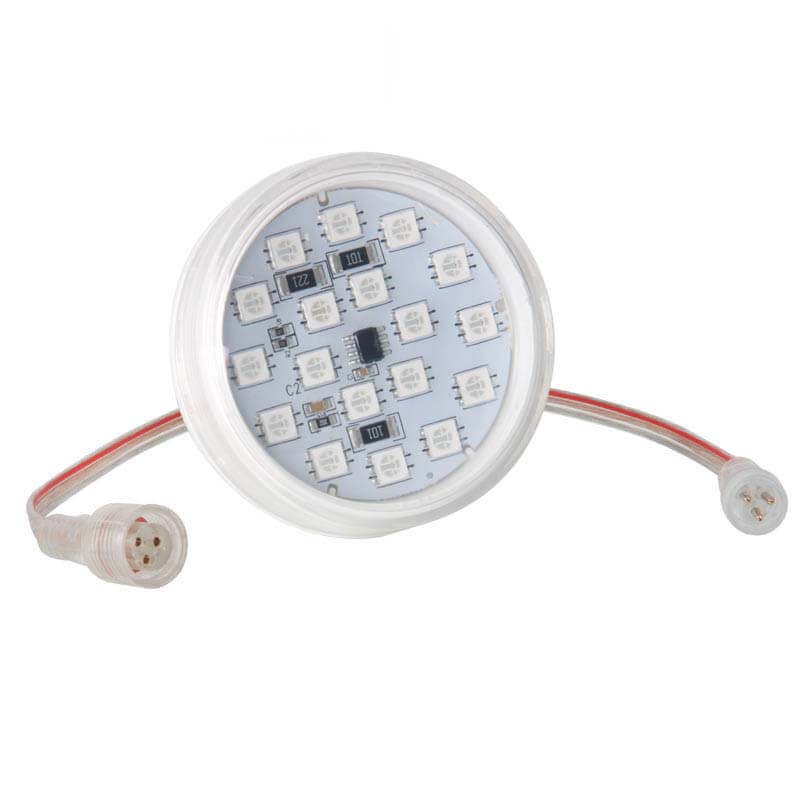

60mm SMD 5050 rgb ucs1903 led pixel amusement light

ucs1903 led pixel for Amusement Ride Ferris Wheel Fairground led light

Product Specification:

  • Item Type: YJLED-004B1
  • LEDchip: 5050smd
  • Lamp Power(W): 1-3.6W
  • Input Voltage(V): DC12/24V AC24V
  • IP Rating: IP65
  • Warranty(Years): 1
see price

60mm SMD 5050 rgb ucs1903 led pixel amusement light advantage :


1. Ruichuan is a professional manufacturer of Amusement led light with experience of more than 12 years.

2. Class A quality with 1 years warranty for all items.

3. Orignal Sanan chips with 100%Class A grade.

4. All leds 100% Qc passed before the shipment.

5. Fully automantic instruments and equipments like solica crystal,wire,sealing glue,spectral color separation


60mm SMD 5050 rgb ucs1903 led pixel amusement light features :


1. Amusement LED Lamp:RGB(muticolor)

2. LED type: 5050 SMD LED

3. Operating condition: DC15mA

4. High consistency in light color, high cost-effective

5. Total power consumption: 3.6W

6. Colors available: red, green, blue(digital)

7 . Luminous intensity: 90-100lm for white

8. Excellent thermal management and lumen maintenance



Product Parameters :


ucs1903 led pixel amusement light Model No: YJLED-004B1
Weight: 135 g
Power Factor: 0.9
CRI: 75
Color: RGB
Beam Angle: 180°
Working Temperature: -20℃-50℃
LED quantity: 12/16/18

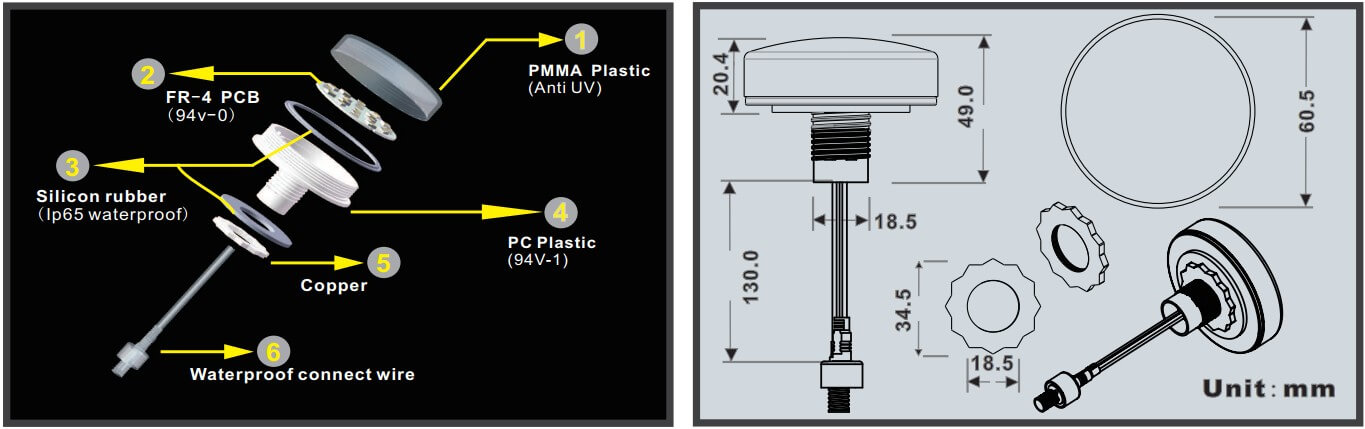

Product Material and Size :


rgb led pixel amusement light

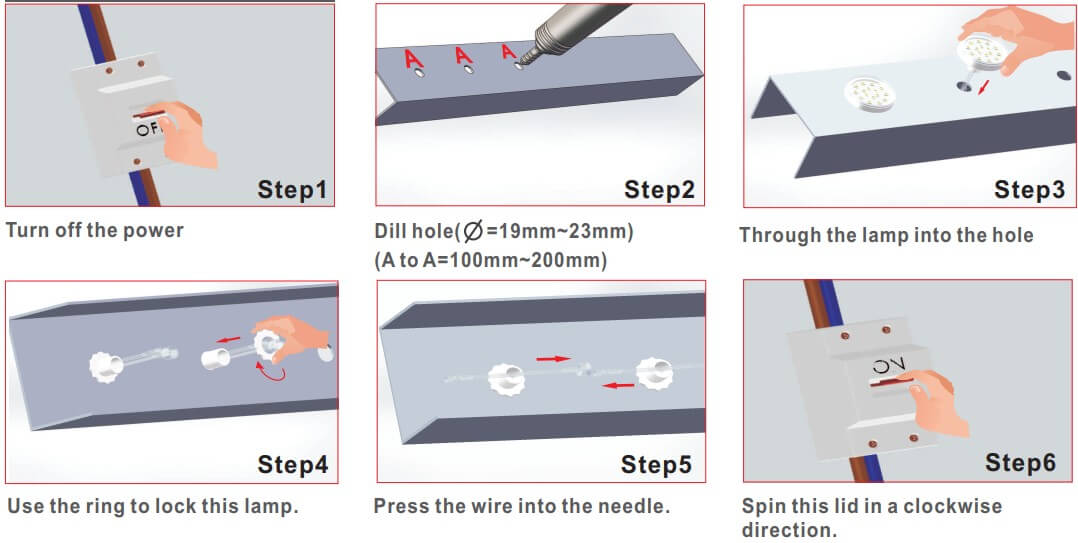

Product Installation :


5050 led pixel amusement light

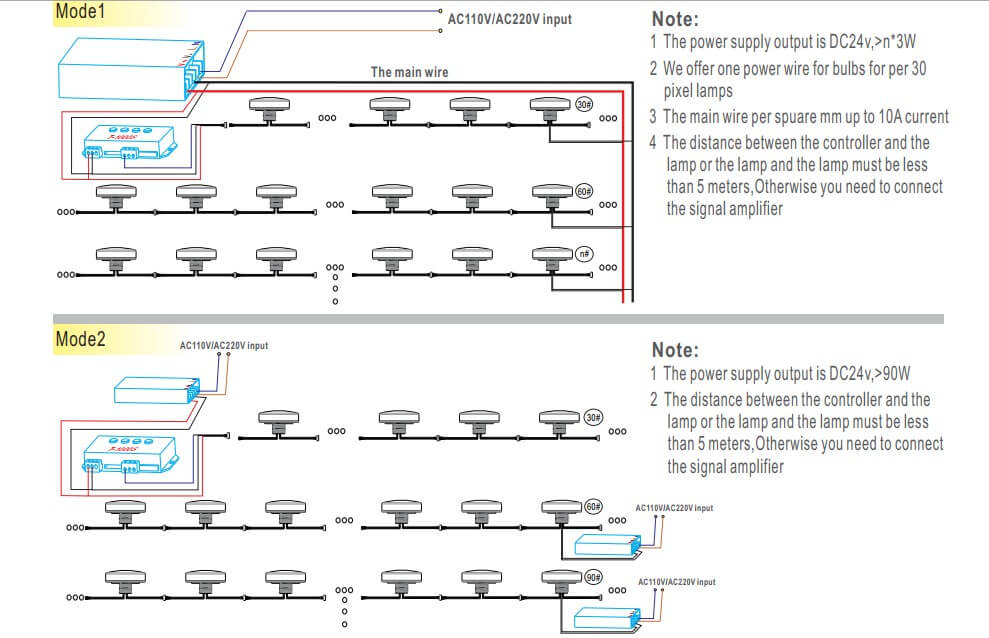

Product Wiring Diagram :


led pixel amusement light 110V



Please read the specification before used:

1. Working temperature range -25°C-45°C

2.Working volatge range less than +-10%

3. Please turn off the power before installation.

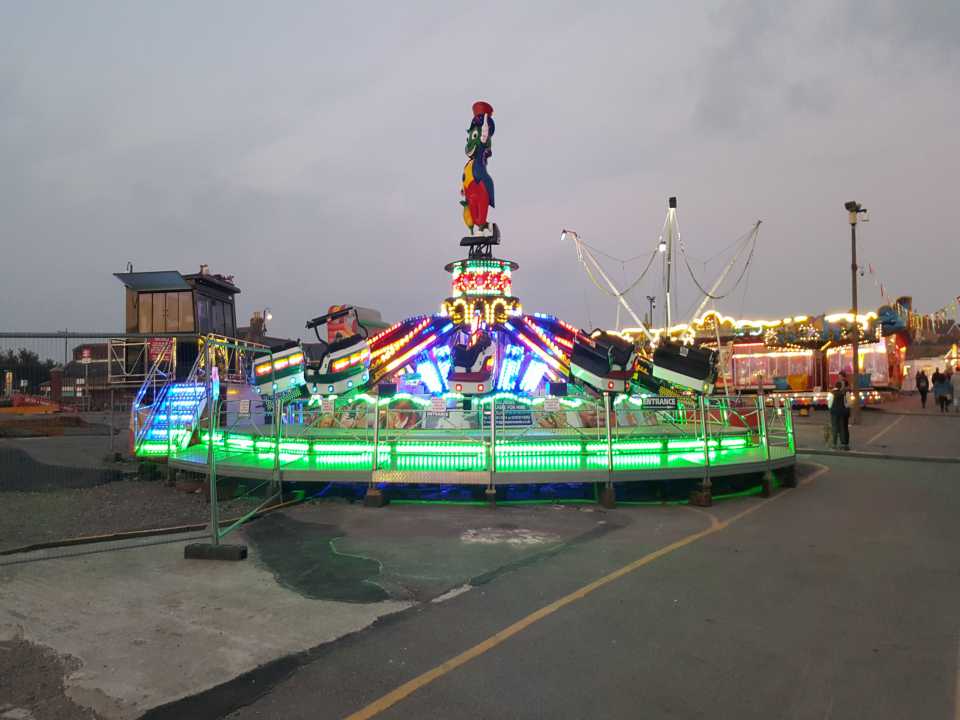

Application :

led pixel amusement light rgb led pixel amusement light China



Q1. Can I have a sample order for led pixel amusement light ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led pixel amusement light ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the led pixel amusement light?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for led pixel amusement light?

A: Yes, we offer 2-5 years warranty to our products.

Q8: What kinds of payment methods do you accept?

A: You can make the payment to our bank account, Western Union or PayPal:

30% deposit in advance, 70% balance against the copy of B/L.
