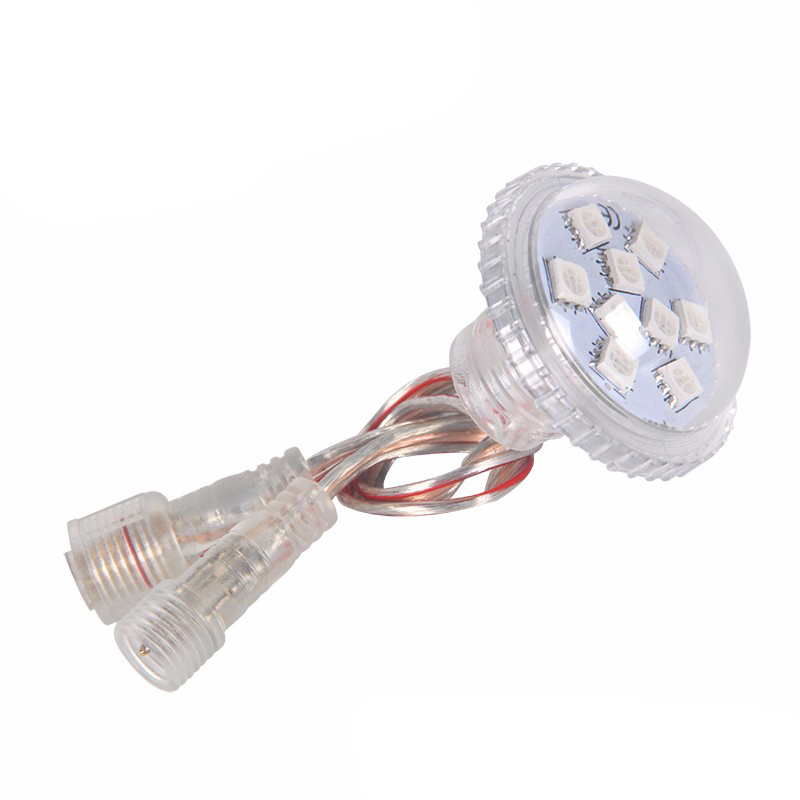

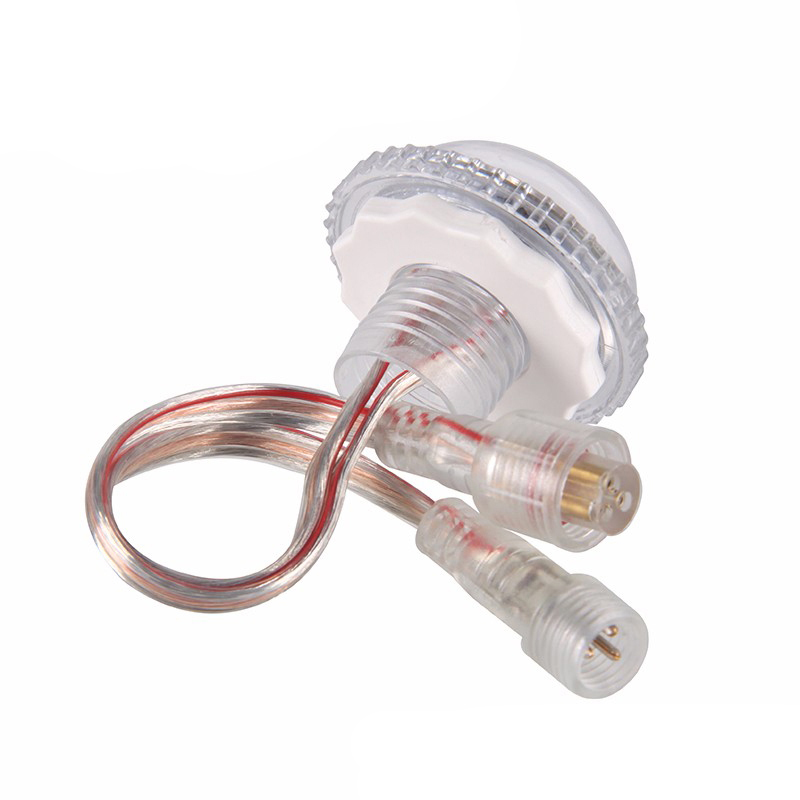

DC12v 40mm 9pcs 5050smd Waterproof rgb led pixel light

E14 LED Waterproof rgb led pixel light

Product Specification:

  • Item Type: YJLED-059
  • LEDchip: 5050smd
  • Lamp Power(W): 2W
  • Input Voltage(V): DC12V
  • IP Rating: IP65
  • Warranty(Years): 1
see price

DC12v 40mm 9pcs 5050smd Waterproof rgb led pixel light advantage :


1. Ruichuan is a professional manufacturer of Amusement led light with experience of more than 12 years.

2. Class A quality with 1 years warranty for all items.

3. Orignal Sanan chips with 100%Class A grade.

4. All leds 100% Qc passed before the shipment.

5. Fully automantic instruments and equipments like solica crystal,wire,sealing glue,spectral color separation


DC12v 40mm 9pcs 5050smd Waterproof rgb led pixel light features :


1. Amusement LED Lamp:RGB(muticolor)

2. Operating condition: DC15mA

3. Input voltage: DC12V

4. High consistency in light color, high cost-effective

5. Total power consumption: 1-3W

6. Colors available: red, green, blue(digital)

7 . Luminous intensity: 90-100lm for white

8. Excellent thermal management and lumen maintenance


Product Parameters :

Waterproof rgb led pixel light Model No: YJLED-059
Weight: 26 g
Power Factor: 0.9
CRI: 75
Color: RGB
Beam Angle: 240°
Working Temperature: -20℃-50℃
LED quantity: 14

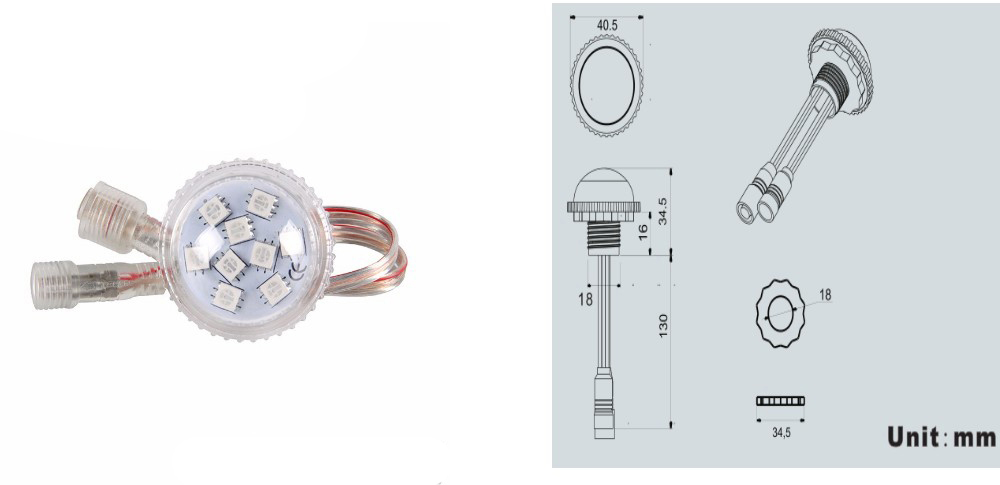

Product Material and Size :


Waterproof rgb led pixel light DC12V

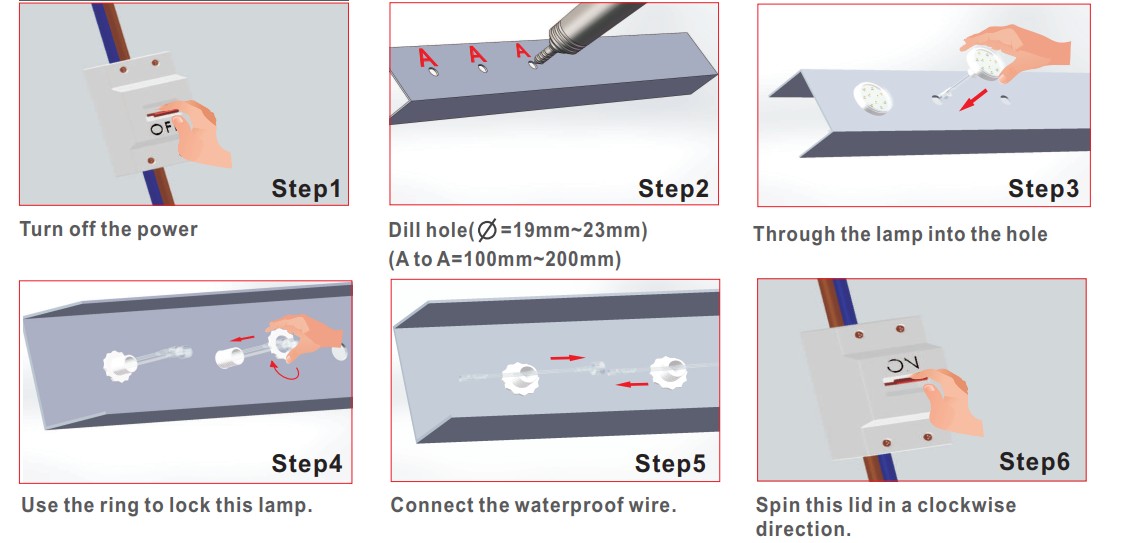

Product Installation :


Waterproof rgb led pixel light 40mm

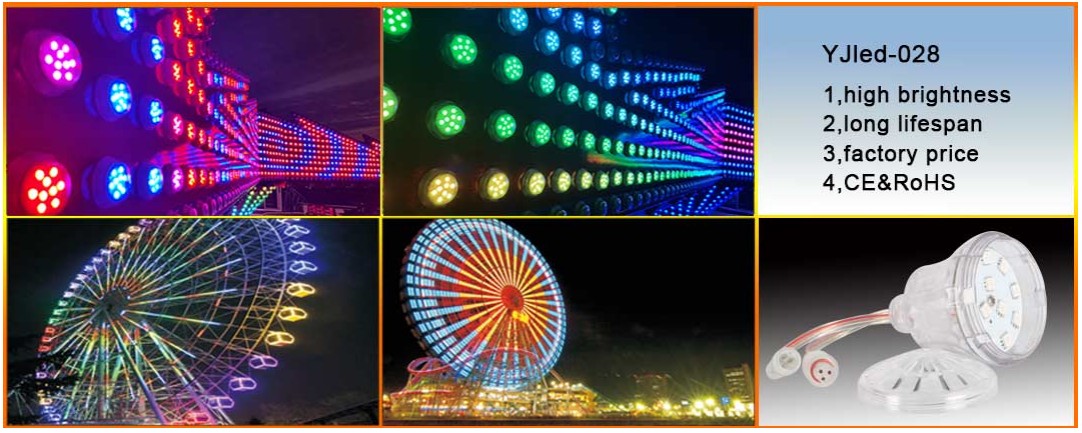

Applications :


Amusement LED lamps are widely applied in amusement equipments in theme parks, such as Ferris Wheels, Roller Coasters, Carousels, Merry-go-rounds, Wheel Rides, Tower Rides, Flume Rides and Water Rides.

Waterproof rgb led pixel light 5050smd





Please read the specification before used:

1. Applicable Voltage:DC12V

2. The power voltage is permitted in +10%~-10% fluctuating. If it’s beyond the said scope, it would influence lifespan, even unlighted or burnt out.

3. Make sure connecting wire is connected and sealed well to avoid defending Electricity Leakage.

4. Make sure waterproof protection, and no defending Water leakage before connecting to extra power supply.

5. Before maintenance, make sure the power cut off. After assembling right, it can be connected power to use.

6. No breaking to any stipulation of fireproofing. Please ask Professional to install.




Q1. Can I have a sample order for Waterproof rgb led pixel light ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Waterproof rgb led pixel light ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the Waterproof rgb led pixel light ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for Waterproof rgb led pixel light ?

A: Yes, we offer 2-5 years warranty to our products.

Q8: What kinds of payment methods do you accept?

A: You can make the payment to our bank account, Western Union or PayPal:

30% deposit in advance, 70% balance against the copy of B/L.
