CE Rohs waterproof 12V Outdoor 20mm RGB pixel led light

12v 20mm waterproof RGB pixel led light

Product Specification:

  • Item Type: YJLED-022
  • LEDchip: 5050smd
  • Lamp Power(W): 0.5W
  • Input Voltage(V): DC12V
  • IP Rating: IP65
  • Warranty(Years): 1
see price

CE Rohs waterproof 12V Outdoor 20mm RGB pixel led light advantage :


1. Ruichuan is a professional manufacturer of Amusement led light with experience of more than 12 years.

2. Class A quality with 1 years warranty for all items.

3. Orignal Sanan chips with 100%Class A grade.

4. All leds 100% Qc passed before the shipment.

5. Fully automatic instruments and equipment like solica crystal,wire,sealing glue,spectral color separation


CE Rohs waterproof 12V Outdoor 20mm RGB pixel led light features :


1.No UV-IR radiation. Green products, no harm to human beings.

2.No heavy metal material (such as mercury, cadmium), friendly to the environment.

3.Good heat output, 90% high efficiency.

4.High luminous efficiency, 30,000 hours long lifespan.

5.Solid light source. Easy for transportation.

6.Low voltage and constant currentoperation, safe for installation and operation, No strobe and glare light, reduce visual tiredness.


Product Parameters :

Model No: YJLED-022
Weight: 12.6 g
Power Factor: 0.9
CRI: 75
Color: RGB
Beam Angle: 180°
Working Temperature: -20℃-50℃
LED quantity: 3

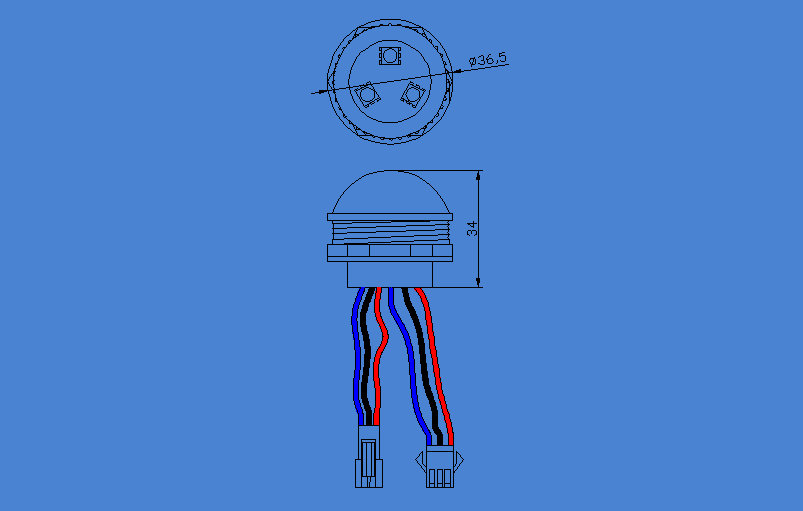

Product Material and Size :


waterproof RGB pixel led light


Characteristic :


Electro-Optical characteristics             Ta=25°C
Parameter Test Condition Symbol


Min Typ Max
Wavelength If=15mA R 620 635 nm
If=15mA G 515 530 nm
If=15mA B 460 475 nm
Power consumption If=15mA P 0.54 0.6 0.66 W
Useful  life If=15mA 30000 50000 H

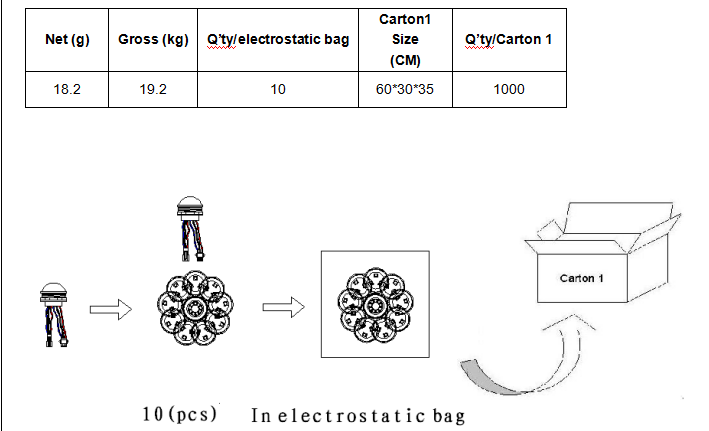

Package  Information :






Please read the specification before used:

1. Applicable Voltage : DC12/24V AC24V

2. The power voltage is permitted in +10%~-10% fluctuating. If it’s beyond the said scope, it would influence lifespan, even unlighted or burnt out.

3. Make sure connecting wire is connected and sealed well to avoid defending Electricity Leakage.

4. Make sure waterproof protection, and no defending Water leakage before connecting to extra power supply.

5. Before maintenance, make sure the power cut off. After assembling right, it can be connected power to use.

6. No breaking to any stipulation of fireproofing. Please ask Professional to install.

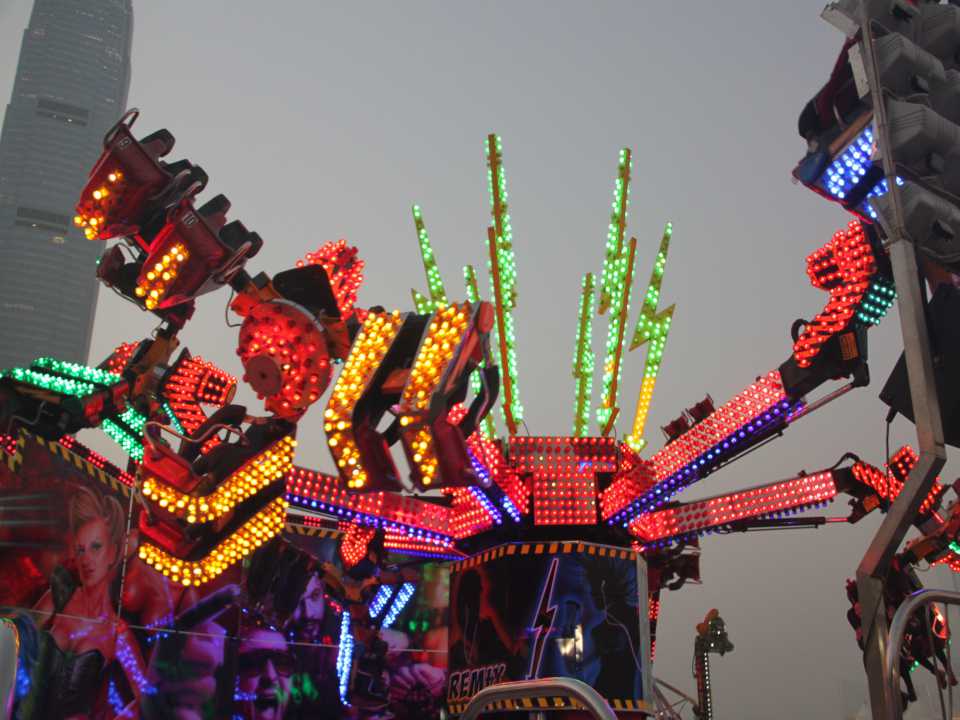

Application :

RGB pixel led light ip65 RGB pixel led light outdoor



Q1. Can I have a sample order for RGB pixel led light ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for RGB pixel led light ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the RGB pixel led light ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for RGB pixel led light ?

A: Yes, we offer 2-5 years warranty to our products.

Q8: What kinds of payment methods do you accept?

A: You can make the payment to our bank account, Western Union or PayPal:

30% deposit in advance, 70% balance against the copy of B/L.
